T-REX 500L Dominator Combo (NO FBL Unit) RH50E10X-NB
Item# 15H-RH50E10X-NB
Customer Rating:


$759.99

Quantity:

Please note this item is a special order item. Please allow 4 business days to process and ship.

**************************************************************************************************************
We appreciate you choosing us for all your RC helicopter needs. Please note that all requested returns and exchanges with Align products
will subject to a 15% restocking fee. Any tampered, used, damaged product will not be permitted for an exchange or return.
Upon receiving any Align product, please inspect the product or items before opening the package. If an item or part is defective upon arrival,
please contact Align.  Align USA would like to provide all technical support for their products. You can contact Align USA at:
Assurance R/C USA
Tel: 626-765-1080
E-mail: enterprisehobby@gmail.com
Thank you and we appreciate your business.
**************************************************************************************************************

NO FLYBARLESS UNIT
PICTURES OF MICROBEAST PLUS IS FOR ILLUSTRATION ONLY

The internationally popular T-REX 500 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. Now the T-Rex 500 evolution continues, as Align drops another shocker into the market; with even more innovative designed incorporated, the brand new T-REX 500L Dominator.

T-REX 500L firstly utilizes composite material integration technology on carbon side frame plates, also adding battery mounting rails and top mounted motor base design make assembly easy and protectable. Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts; he FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

T-Rex 500L features high stability, excellent gust resistance, superior control feel, and being 500 is just the right size/price, it is the ultimate choice for enthusiasts.


The 500FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

Top mounted motor base bringing the motor's center of gravity closer to rotating disc, improving 3D agility.
Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.






Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.

Carbon side frame plates utilized composite material integration technology, adding battery mounting rails.The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. Frame reinforcement plates were added to effectively increase frame rigidity and increase anti-torsion ability.



New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.

The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.



High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.

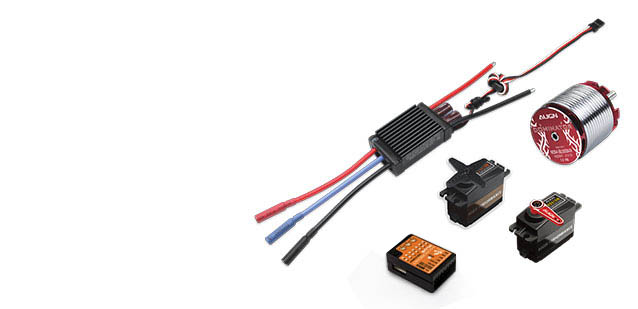

Standard equipment

Microbeast PLUS Flybarless System X 1 set
RCE-BL70G Brushless ESC X 1
500MX Brushless Motor(1600KV) X 1
DS515M Digital servo X 3
DS525M Digital servo X 1

Specification

Length: 863mm
Height: 285mm
Main Blade Length: 425mm
Main Rotor Diameter: 989mm
Tail Rotor Diameter: 206mm
Motor Drive Gear:12T
Main Drive Gear:134T
Autorotation Tail Drive Gear: 145T
Tail Drive Gear: 36T
Drive Gear Ratio: 1:11.17:4.03
Weight(With Motor): 1210g

Accessories

T-REX 500L DOMINATOR Set X1
Microbeast PLUS Flybarless System X1 set
425 Carbon Fiber Blades X1
500MX Brushless Motor(1600KV) X1
DS515M Digital servo X3
DS525M Digital servo X1
RCE-BL70G Brushless ESC X1

Radio transmitter and electronic equipment required for assembly:
Transmitter(7-channel or more, helicopter system)
Receiver(7-channel or more)
6S Li-Po 2600 ~ 3300mAh x 1 (3300mAh suggestion)
Digital Pitch Gauge
